商品の詳細:
|
| フォームファクター: | 2U ラックマウントサーバー | プロセッサー: | 「1 つまたは 2 つの第 3 世代インテル® Xeon® スケーラブル プロセッサー 3 つの UPI |
|---|---|---|---|
| メモリ: | 16×メモリスロット | ストレージ: | 最大 24 × 3.5 インチ SAS/SATA HDD (ホットプラグ) |
| I/O スケーラブル スロット: | 最大 7 × PCIe スロット（1 × OCP3.0 スロット、最大 2 × OCP3.0 スロットを含む） | ネットワーク: | 「最大 2 x OCP3.0、1/10/25/40/100/200Gb/s」 |
| ハイライト: | Inspur 2U rack server 8368CPU,NF5266 M6 server rack storage,Inspur server rack with warranty |
||

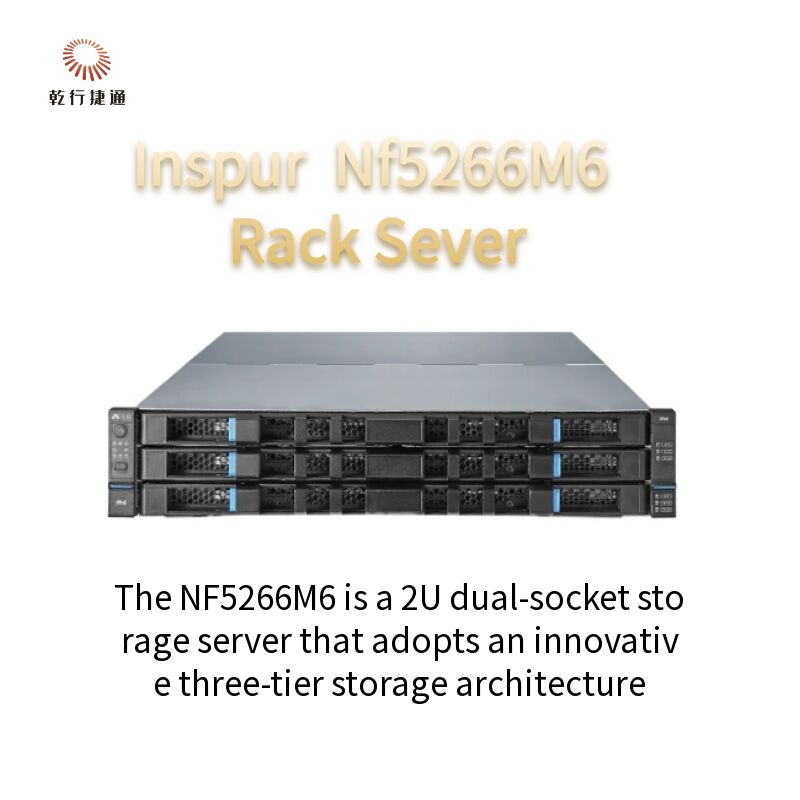

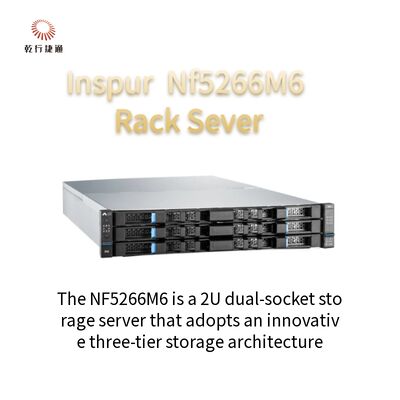

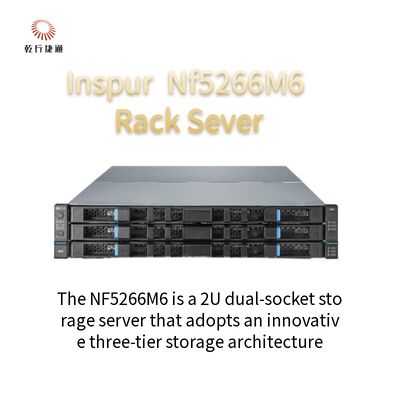

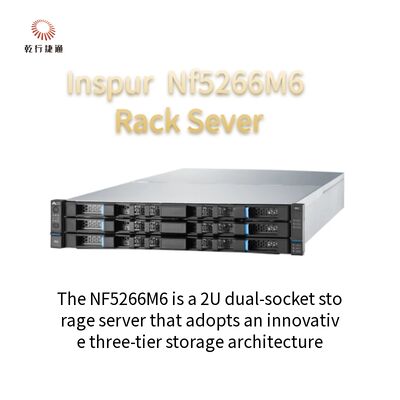

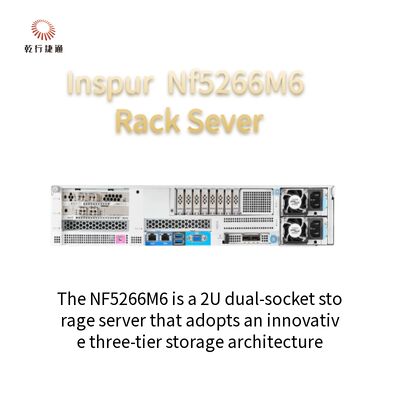

Inspur NF5266M6 2U Storage Server
The NF5266M6 is a 2U dual-socket storage server that adopts an innovative three-tier storage architecture. It has improvement and optimization in storage and computing performance,fiexible configuration, and intelligent management. It is suitable for big data,CDN,hyper-converged,distributed storage,etc.
Technical Specifications
| Model | NF5266M6 |
| Form Factor | 2U rackmount server |
| Processor | 1 or 2 3rd Generation Intel® Xeon® Scalable processors 3 UPIs and 11.2GT/s per link |
| Memory | 1. 16 x memory slots 2. Each processor supports 8 x memory channels and each channel supports a maximum of 1 memory slot 3. Memory speed can reach 3200MT/s. Support RDIMM and BPS/NVDIMM 4. Memory protection mechanisms: ECC, memory mirroring, memory-level protection |
| Storage | Front: up to 24 × 3.5-inch SAS/SATA HDDs (hot-plug) Rear: up to 8 x 2.5-inch SAS/SATA/NVMe/E1.S SSDs or 2 x 3.5-inch drives (hot-plug) Up to 2 x M.2 SSDs or 2 x E1.S SSDs storage modules Up to 2 x TF cards (1 x BIOS + 1 x BMC) (Max. drive support is determined by the specific configuration) |
| I/O Scalable Slot | Up to 7×PCIe slots, including 1x OCP3.0 slot, up to 2 x OCP3.0 slots |
| Network | Up to 2 x OCP3.0, 1/10/25/40/100/200Gb/s 1/10/25/40/100/200Gb standard NICs |
| Interface | 2 x rear USB3.0 + 1 x rear VGA + 1 x COM port |
| System Fan | N+1 redundancy and hot-pluggable |
| PSU | 1+1 redundant platinum power supplies High-voltage DC and titanium power supply |
| System Management | An independent 1000Mbps NIC dedicated to IPMI remote management |
| OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimension(W x H x D) | 482mm(19 inches) x 87.5mm(3.4 inches) x 891.2 mm(35 inches) (with mounting ears) 447mm(17.6 inches) x 87.5mm (3.4 inches)x 866 mm (34.1 inches) (without mounting ears) |
| Weight | 45kg (99.2 lbs) |
| Working Temperature | 5°C-40°C. 41°F-104°F |
Key Features
1. 2U space supports up to 26×3.5-inch drives. Compared with the traditional 2U12 drive model, the storage density is increased by 116%. It also supports up to 8 x 2.5-inch small drives and the SSD cache density is 100% higher than the previous generation.
2. 2×3rd Generation Intel® Xeon® Scalable processors enable even outstanding CPU computing power. Compared with the previous generation, this machine has the performance boosted by up to 44%, ideal for demanding scenario of computing power in big data analysis.
1. I/O expansion capability is increased by 75%. The transfer rate of PCIe4.0 is doubled and reaches 16GT/s. Support the 200Gb network and ensure a low-latency experience.
2. The modular design allows the on-demand combination of storage and IO. It supports 8 x SAS/SATA/NVMe/E1.S SSDs to meet the needs of data tiering, and enables 1/10/25/100/200Gb NICs and SMART NIC to support various network requirements.
