商品の詳細:
|
| 特徴: | S5130S-52P-EI | 左舷転換容量: | 104Gbps |
|---|---|---|---|
| 転送能力: | 78Mpps | 寸法(W×D×H): | 440×230×43.6mm |
| 重さ: | ≤3.5kg | 10/100/1000 Base-T ポート: | 48 |
| ハイライト: | H3C S5130S-52P-EI gigabit switch,enhanced gigabit access switch,rack storage server switch |
||

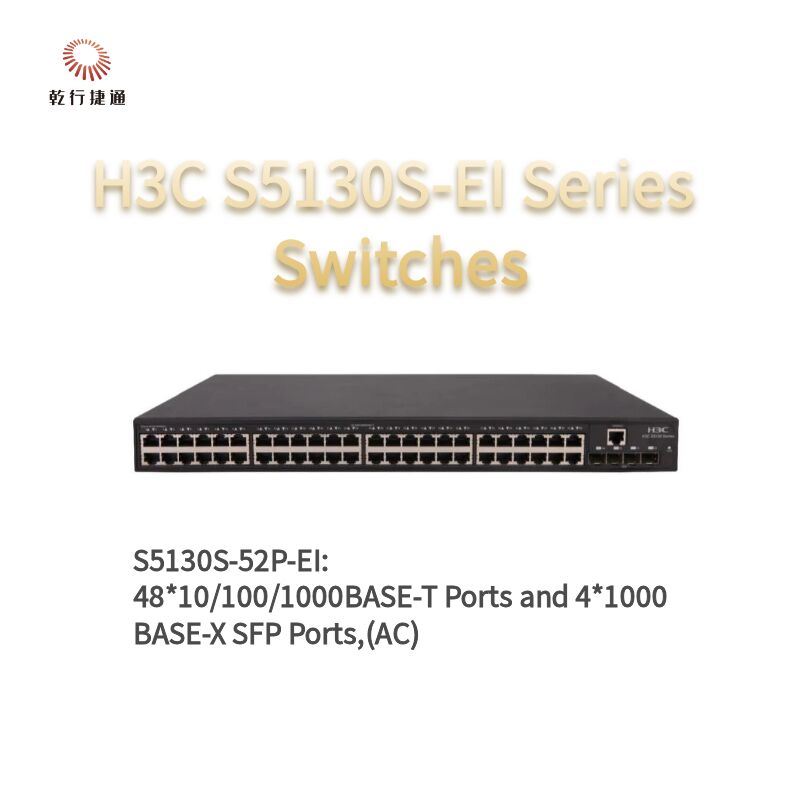

Product Overview
H3C S5130S-EI Series Switches – A simple (fixed power design), cost-effective and easy to deploy access switching solution with POE+ that offer enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high-density campus access.
| Hardware Specifications | ||||
| Features | S5130S-10P-EI | S5130S-20P-EI | S5130S-28P-EI | S5130S-52P-EI |
| Port Switching capacity | 20Gbps | 40Gbps | 56Gbps | 104Gbps |
| Forwarding capacity | 15Mpps | 30Mpps | 42Mpps | 78Mpps |
| Box Switching capacity | 336Gbps | |||
| CPU | 1 Core, 800MHz | |||
| Flash/SDRAM | 256MB/512MB | |||
| Latency (64byte/µs) | GE: < 5µs | |||
| Dimensions(W× D×H) | 266×161×43.6 mm | 330×230×43.6 mm | 440×160×43.6 mm | 440×230×43.6 mm |
| Weight | ≤1.5kg | ≤2kg | ≤2.5kg | ≤3.5kg |
| 10/100/1000 Base-T port | 8 | 16 | 24 | 48 |
| SFP Port | 2 | 4 | 4 | 4 |
| Maximum Stacking Bandwidth | 16Gbps | 16Gbps | 16Gbps | 16Gbps |
| Maximum stacking Num | 9 | 9 | 9 | 9 |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz | AC: Rated voltage range: 100V~240V AC, 50/60Hz | AC: Rated voltage range: 100V~240V AC, 50/60Hz | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption | MIN: AC: 7W MAX: AC: 12W |
MIN: AC: 9W MAX: AC: 19W |
MIN: AC:9W MAX: AC:23W |
MIN: AC:18W MAX: AC:41W |
| Fan NUM | Fanless | Fanless | Fanless | 1 |
| MTBF(Year) | 168.61 | 136.24 | 150.86 | 115.68 |
| MTTR(Hour) | 1 | 1 | 1 | 1 |
| Operating Temperature |
-5℃ ~ 45℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
|||
| Storage Temperature | -40℃ ~ 70℃ | |||
| Operating & Storage Relative Humidity | 5% RH to 95% RH, non-condensing | |||
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
