商品の詳細:
|
| プロセッサー: | 2 つのインテル Xeon 6 プロセッサー | メモリ: | 登録済み ECC DDR5 DIMM のみをサポート |
|---|---|---|---|
| 貯蔵のコントローラー: | 内部コントローラー: フロント PERC H965i、フロント PERC H975i、フロント PERC H365i | フロントベイズ: | バックプレーン構成なし |
| ホットスワップ電源: | 1500W AC277VまたはDC336V* | 冷却オプション: | 空冷と直接液冷 |
| ハイライト: | PowerEdge R670 rack server,1U rack storage server,Intel Xeon rack server |
||

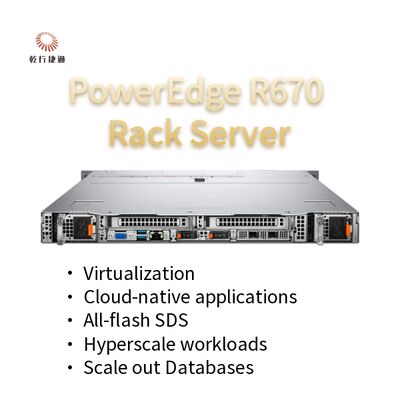

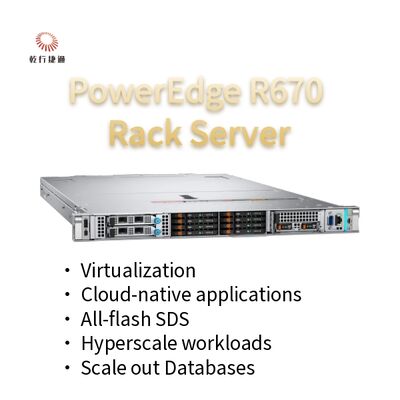

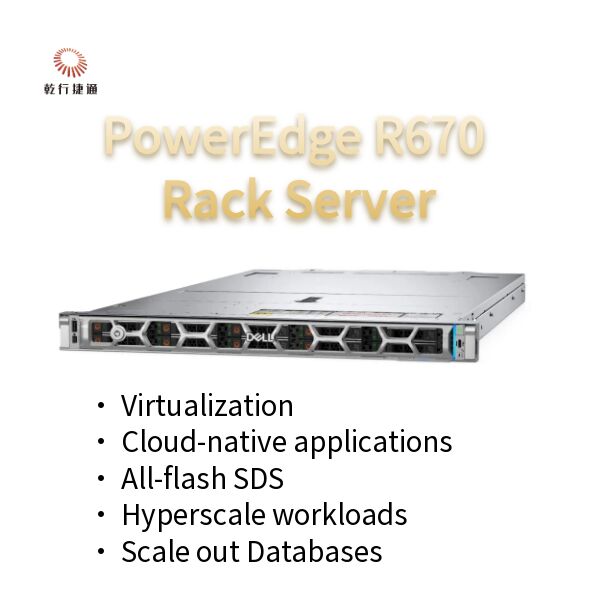

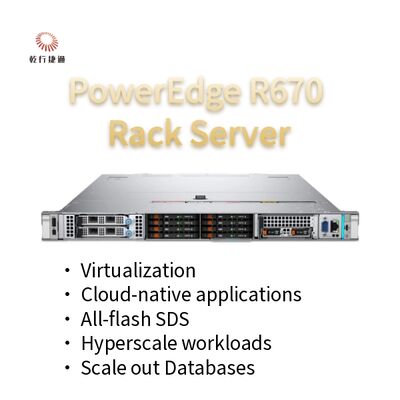

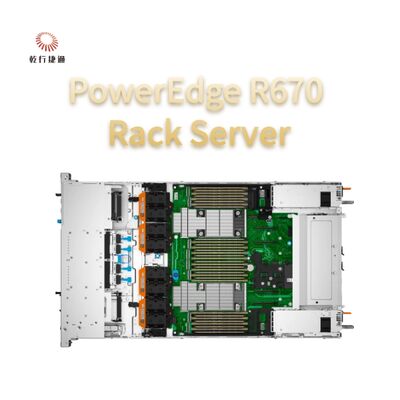

PowerEdge R670 Server
Elevate your datacenter efficiencies with optimized power and balanced performance. Boost Datacenter Efficiencies and Performance
The Dell PowerEdge R670 is a 1U, dual-socket rack server designed for high performance computing with optimal power efficiency and balanced performance to boost your data center productivity. It balances advanced computing power with virtulization, cloud-native applications, all flash SDS, hyperscale workloads and scale out databases.
Purpose-built for enterprise and scalable infrastructures, the PowerEdge R670 offers standardization that easily integrates into existing environments, equipped with two Intel® Xeon® 6 processors with E-cores and P-cores, it offers up to 1.69x better performance per watt than previous models, improving power efficiency and increasing rack density. The addition of GPU support further amplifies computational power, ensuring high performance with lower energy use.
These servers are available in rear I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle improves serviceability, reduces maintenance time, and enhances efficiency, reliability, and uptime, supporting your sustainability goals by optimizing cooling and energy use. It also features Dell’s Smart Power and Cooling Technology, optimized for air cooling to significantly reduce energy consumption, contributing to long-term operational savings.
| Feature | Technical Specifications | |
| Processor | Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor | |
| Memory | • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
|
| Storage controllers | • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB • Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i |
|
| Front Bays | • No Backplane configuration • Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration • Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB • Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB • Up to 8 x 2.5 inch SATA/NVMe Direct/NVMe Raid max 491.52 TB • 8 x 2.5-inch Universal 491.52 TB • Up to 10 x 2.5 inch SATA max 38.4 TB • Up to 2 x EDSFF E3.S Gen5 NVMe in the rear max 122.88 TB |
|
| Hot swap Power Supplies | • 1500 W Titanium 100—240 VAC or 240 VDC • 1100 W Titanium 100—240 VAC or 240 VDC • 800 W Titanium 100—240 VAC or 240 VDC • 1100 W Platinum 100—240 VAC or 240 VDC • 800 W Platinum 100—240 VAC or 240 VDC • 1800 W HLAC Titanium 200—240 VAC or 240 VDC* • 1500 W 277 VAC or 336 VDC* • 1400 W LVDC -48 — -60 VDC |
|
| Cooling Options | • Air cooling and Direct Liquid Cooling • Note : DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
|
| Fans | • High performance Silver (HPR SLVR) or Standard (STD) fans • Up to 4 sets (dual fan module) hot swappable fans |
|
| Dimensions and Weight | Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Weight – 20.42 kg (45.02 pounds) |
Depth (for rear I/O configuration) • 816.92 mm (32.20 inches) with bezel • 815.14 mm (32.09 inches) without bezel Depth (for front I/O configuration) • 829.44 mm (32.66 inches) without bezel Note: The front I/O configuration does not support the bezel. |
| Form Factor | 1U rack server | |
| Embedded Management | • iDRAC • iDRAC Direct • iDRAC RESTful API with Redfish • RACADM CLI • iDRAC Service Module (iSM) • Quick Sync 2 wireless module • NativeEdge Endpoint* • NativeEdge Orchestrator* |
|
| Bezel | Optional security bezel | |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
|
| Network options | 2 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE* Slot 31 1 x16 OCP 3.0 on front riser Slot 32 1 x16 OCP 3.0 on front riser Slot 2 1 x16 OCP 3.0 Slot 5 1 x8 Gen5 OCP 3.0 or 1 x16 Gen5 OCP 3.0 |
|
| BOSS | Slot 34: Front BOSS slot or Slot 3: Rear BOSS slot |
|
| GPU options | Up to 3 x 75 W SW | |
| DPU options | • NVIDIA BlueField-3 2x200 GbE B3220 • NVIDIA BlueField-3 1x400 GbE B3140H |
|
| Ports | Front Ports: • 1 x USB 2.0 Type C port • 1 x USB 2.0 Type A port (optional) • 1 x Mini-DisplayPort (optional) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated ethernet port for iDRAC management |
Rear Ports: • 1 x Dedicated ethernet port for iDRAC management • 1 x VGA • 2 x USB 3.1 Type A ports |
| Internal Ports: • 1 x USB 3.1 Type A port |
||
| PCIe | • Up to 2 x16 Gen5 PCIe slots • Slot 31 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser • Slot 32 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser • Up to 3 x16 or 2 x8 Gen5 PCIe slots • Slot 1 1 x16 Full Height - Half Length or Full Height - Full Length or 3 x16 or 1 x8 Low Profile - Half Length • Slot 2 1 x16 or 1 x8 Low Profile - Half Length or 1 x16 OCP 3.0 • Slot 4 1 x16 Full Height - Half Length or 1 x16 Low Profile - Half Length |
|
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V (P-Core only) • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi • Dell NativeEdge OS* |
|
| OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you | |
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services designed to meet you wherever you are. Accelerate time to value in achieving high AI use cases with Professional Services for AI, choose from tailored deployment options with the ProDeploy Suite, receive proactive and predictive support with our ProSupport Suite, and so much more with our services available across 170 locations and backed by our 60K+ employees and partners.
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
