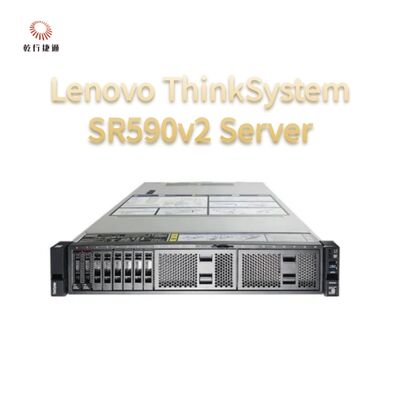

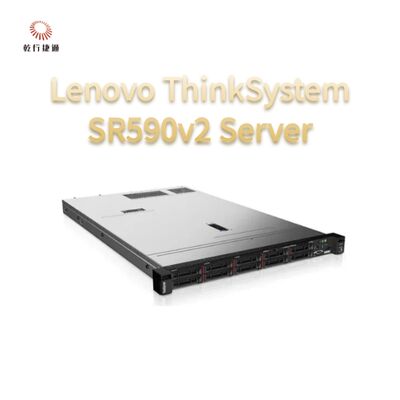

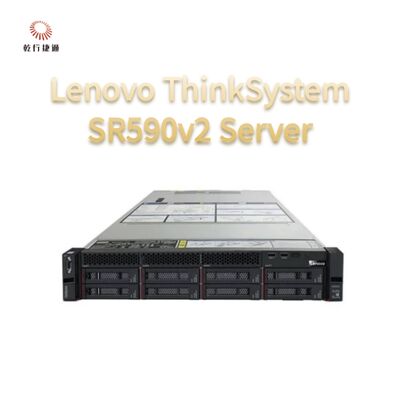

Lenovo ThinkSystem SR590 rack server
Lenovo ThinkSystem SR590 is a 2-socket 2U rack server for small businesses up to large enterprises that
need industry-leading reliability, management, and security, as well as balancing performance and
expandability. The SR590 server is designed to handle a wide range of workloads, such as virtualization and
cloud computing, IT infrastructure, enterprise applications, collaboration/email, and web serving.
Featuring the Intel Xeon Processor Scalable Family, the SR590 server offers balanced performance, storage
capacity, and I/O expansion. The SR590 server supports up to two processors, up to 1 TB of 2666 MHz
TruDDR4 memory, up to 16x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of
NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with the LOM
slot and up to 6x PCIe slots.
The SR590 server offers basic software RAID or advanced hardware RAID protection and a wide range of
networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation
Lenovo XClarity Controller, which is built into the SR590 server, provides advanced service processor
control, monitoring, and alerting functions.
|
MODEL
|
SR590V2 server
|
|
Form Factor
|
2U rack server
|
|
processor
|
Up to 2 third-generation Intel ® xeon ® Scalable processor, up to 36 cores, up to 205W TDP
|
|
Memory
|
24 DDR4 memory slots;
Up to 3Tb, using 24 128GB LRDIMMs;
Supports up to 8 Intel ® Optane ™ Persistent Memory 200 Series Module (PMem)
|
|
storage
|
Up to 14 3.5-inch or 28 2.5-inch drives;
Up to 28 NVMe drives supported by NVMe switch adapters;
Two M.2 boot drives (RAID 1);
Backend 2 7mm boot drives (RAID 1)
|
|
I/O expansion
|
Supports up to 9 PCIe slots, including 8 PCIe 4.0 slots and 1 OCP 3.0 slot
|
|
network
|
The LOM adapter is installed in the OCP 3.0 slot;
PCIe adapter
|
|
Power Supply
|
Dual redundant power supply (up to 1600W Platinum)
|
|
RAID
|
Standard software RAID;
Optional hardware RAID with/without cache or 8/16 port SAS HBA
|
|
operating system
|
Microsoft,SUSE,Red Hat,VMware. Visit lenovopress.com osig for more information
|
|
GPU
|
Up to 8 single width or 3 double width GPUs
|
|
port
|
Front: 1 USB 3.1 G1, 1 USB 2.0, and 1 VGA (optional)
Back: 3 USB 3.1 G1, 1 VGA, 1 RJ-45 (management), 1 serial port (optional)
|
