| タイプ: | 2u | プロセッサー: | 最大 2 つの第 3 世代 Intel @ xeon @ スケーラブル プロセッサー プラチナ シリーズ |
|---|---|---|---|
| メモリ: | メモリ: 32 DDR4 メモリ ソケット。 32 128GB 3DS RDIMM を使用 | ドライブ ベイ: | 最大 20 台の 3.5 インチ ドライブまたは 40 台の 2.5 インチ ドライブ |
| 拡張スロット: | 拡張スロットは最大 10 個の PCle スロットをサポートします | ネットワークインターフェース: | Lom アダプターは OCP 3.0 スロットに取り付けられています |
| ハイライト: | ThinkSystem SR658 V2 2U rack server,DDR4 server memory rack storage,Third-generation rack server host |
||

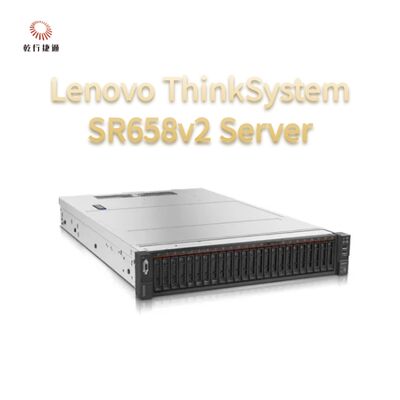

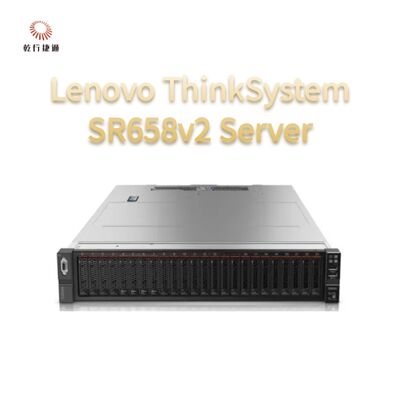

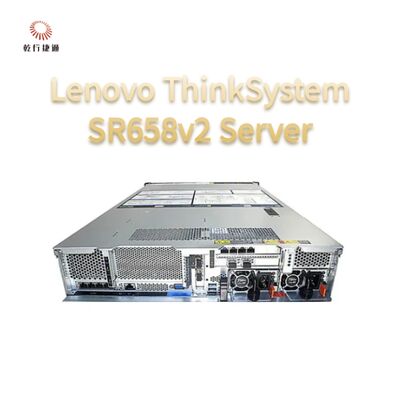

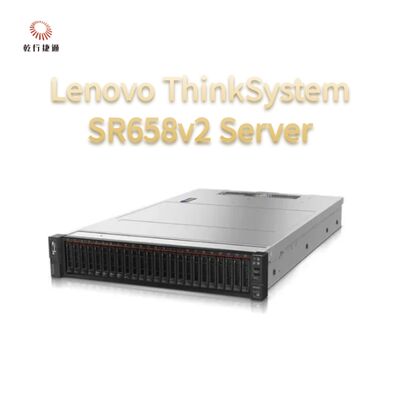

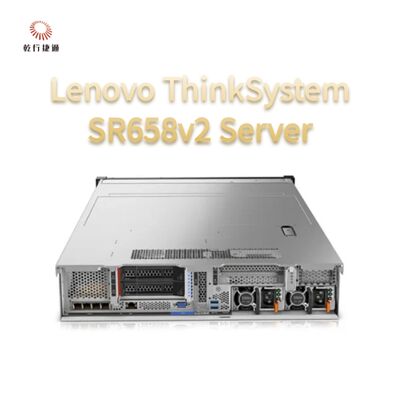

| Product name | SR658V2 server |
| Model NO. | SR658V2 |
| Type | 2u |
| processor | Up to 2 3rd generation Intel ® xeon ® Scalable processor platinum series, up to 40 cores, up to 270W TDP |
| Memory | Memory: 32 DDR4 memory sockets; Use 32 128GB 3ds rdimms; Up to 16 Intel ® Ao Teng ™ Persistent memory 200 series module |
| Drive Bay | Up to 20 3.5 inch or 40 2.5 inch drives; Up to 32 nvme drives, supported by nvme switch adapter; 2 m.2 boot drives (RAID 1); Back end 2 7mm boot drives (RAID 1) |
| Expansion Slots | The expansion slot supports up to 10 PCIe slots, including 8 PCIe 4.0 slots, 1 OCP 3.0 slot and 1 HbA / raid adapter slot with cable (not applicable to standard PCIe slots) |
| network interface | Lom adapter is installed in OCP 3.0 slot; Multiple PCIe adapters can be supported at the same time |
| Power Supply | Dual redundant power supply (maximum 1800W platinum) |
| system management | Lenovo XClarity Controller |
| GPU support | Up to 8 single width or 3 double width GPUs |
| USB port | Front: 1 USB 3.1 G1, 1 USB 2.0, supporting xclarity mobile, 1 VGA (optional), 1 external diagnostic phone port Back: 3 USB 3.1 G1,1 VGA, 1 RJ-45 (Management), 1 serial port (optional) |
| HBA / raid support | Standard software RAID; Optional hardware raid with / without cache or 8 / 16 port SAS HBA |
