| モデル: | S5570S-28S-HPWR-EI-A | 左舷スイッチ容量（ビット/秒）: | 128g |
|---|---|---|---|
| パケット転送速度: | 96Mpps | SDRAM: | 1g |
| CPU: | 1GHz、2コア | USBポート: | 1 |
| ハイライト: | H3C S5570S-EI Ethernet switch,S5570S-28S-HPWR-EI-A switch,Fibre Channel Ethernet switch |
||

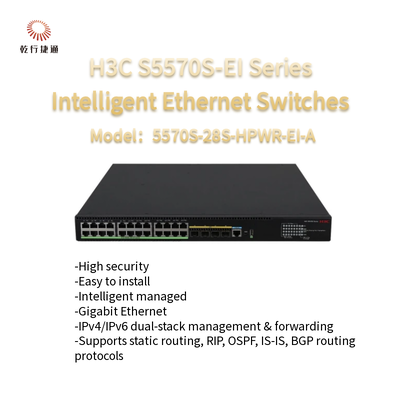

H3C S5570S-EI Series High Performance Intelligent Ethernet Switches
Product Overview
H3C S5570S-EI series switches are a new generation of high-performance, high-port density, high-security and easy-to-install intelligent managed Gigabit Ethernet switches developed by H3C using industry-leading ASIC technology, supporting IPv4/IPv6 dual-stack management and forwarding, supports static routing protocols and routing protocols such as RIP, OSPF, IS-IS, BGP, etc., and supports rich management and security features.
H3C S5570S-EI series switches are mainly positioned at the access layer and aggregation layer of enterprises and campuses, meeting high-density Gigabit access, fixed 10 Gigabit uplink ports, supporting PoE+, and building high-performance end-to-end IP network solutions with other H3C products.
| Model | S5570S-28S-HPWR-EI-A |
| Port switch capacity(bps) | 128G |
| System Switching Capacity(bps) | 598Gbps |
| Packet forwarding rate | 96Mpps |
| Flash | 512M |
| SDRAM | 1G |
| Buffer(byte) | 2M |
| CPU | 1GHz, 2Cores |
| Console port | 1 console port(RJ45) |
| Eth management | / |
| USB Port | 1 |
| Service port description | 24*10 /100/1000Base-T autosensing Ethernet ports, 4*10G SFP+ ports |
| PoE+ | Y |
| Dimensions (W×D×H, unit: mm) | 440×400×43.6 |
| weight | ≤7.5kg |
| Input voltage | • Rated voltage range: 100V ~ 240V AC, 50/60Hz • Maximum voltage range: 90V ~ 290V AC, 47 ~ 63Hz |
| 80 PLUS(80 PLUS Certified) | Y (80 PLUS Platinum) |
| Power consumption (static) | Single AC input: 42 W Dual AC inputs: 50 W Single DC input: 39 W Dual DC inputs: 55 W |
| Power consumption (at full load) | Single: 965W(PoE:840W) Dual: 960W(PoE:840W) |
| Fan | 2 |
| MTBF(Year) | 111.29/55.18(with psu) |
| MTTR(Hour) | 1 |
| Working temperature | -5℃~45℃ |
| Storage temperature | -40 ~ +70℃ |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
