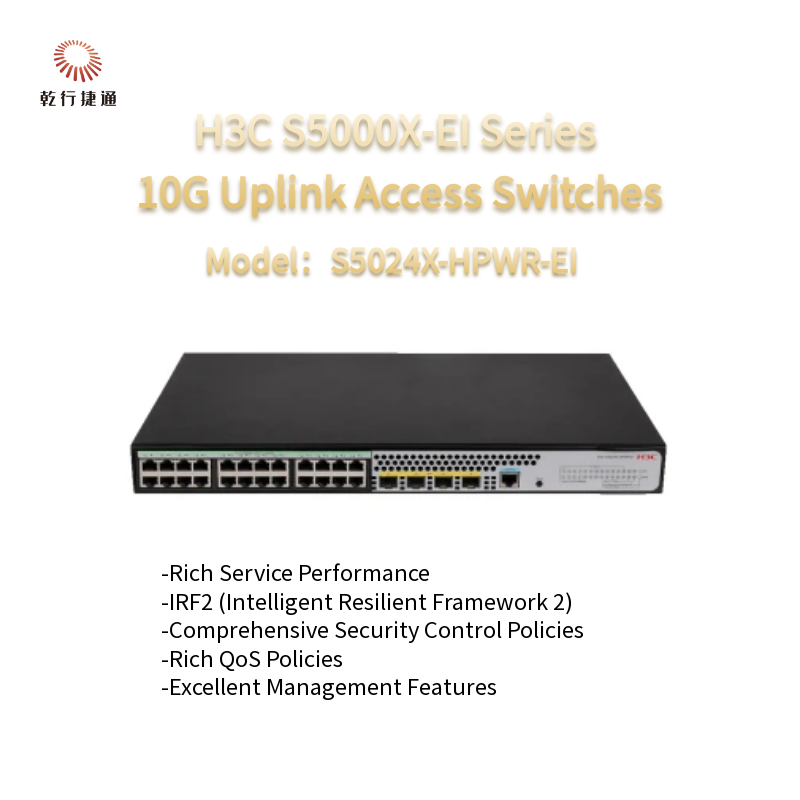

H3C S5000X-EI Series S5024X-HPWR-EI 10G Uplink Access Switches

H3C S5000X-EI Series S5024X-HPWR-EI 10G Uplink Access Switches
H3C S5000X-EI Series S5024X-HPWR-EI 10G Uplink Access Switches

大画像 :  H3C S5000X-EI Series S5024X-HPWR-EI 10G Uplink Access Switches

商品の詳細:
ブランド名: H3C
モデル番号: S5024X-HPWR-EI
お支払配送条件:
最小注文数量: 1
価格: $1688-2288
連絡先

H3C S5000X-EI Series S5024X-HPWR-EI 10G Uplink Access Switches

説明
サポートされている機能: S5024X-HPWR-EI スイッチング容量 (全二重): 502Gbps/5.02Tbps（全モデル共通）
「パケット転送速度（装置全体）」: 126Mpps VLAN: MAC VLANをサポート
IPv6: ND、PMTUをサポート DNS: IPv4 および IPv6 アドレスをサポート
ハイライト:

H3C S5000X-EI 10G access switch

,

S5024X-HPWR-EI fibre channel switch

,

10G uplink access switch with warranty


H3C S5000X-EI Series 10G Uplink Access Switches


Product Overview

The H3C S5000X-EI Series are third-generation intelligent managed switches independently developed by H3C, designed for high-performance, high-density, high-uplink-rate and easy-to-deploy networks.
They feature 10/100/1000Base-T auto-sensing ports and 10G SFP+ uplinks, delivering gigabit-to-desktop access with large uplink bandwidth in enterprise networks, or aggregating users/lower-tier switches and connecting to high-capacity L3 switches via 10G fiber/link aggregation in MAN or industry networks.

With innovative IRF technology, up to 9 switches can form a single logical entity, enabling high-reliability, scalable and easy-to-manage intelligent networks.


Supported Features S5024X-HPWR-EI
Switching Capacity (Full-Duplex) 502Gbps/5.02Tbps (shared across all models)
Packet Forwarding Rate
(Whole Device)		 126Mpps
Port Description 24×10/100/1000TX Ethernet ports + 4×SFP+ ports
Ethernet Features Supports IRF2;
Supports Static MAC configuration;
Supports Port mirroring and flow mirroring;
Supports Port aggregation (max. 8 ports per group);
Supports 10GE port aggregation;
Supports Port isolation;
Supports STP/RSTP/MSTP;
SupportsIEEE 802.3ad (dynamic link aggregation) and static port aggregation;
Supports Jumbo Frame support
VLAN Supports port-based VLAN;
Supports MAC VLAN;
Supports Guest VLAN
ARP Supports ARP Detection;
Supports ARP rate limiting
IPv6 Supports IPv6 static routing, dual protocol stack;
Supports DHCPv6 Client, DHCPv6 Snooping;
Supports ND, PMTU;
Supports IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution
DHCP Supports DHCP Client;
Supports DHCP Snooping;
Supports DHCP Relay;
Supports DHCP Option 82
DNS Supports static domain name resolution;
Supports Dynamic domain name resolution client;
Supports IPv4 and IPv6 addresses
Routing Protocols Supports IPv4/IPv6 static routing
Broadcast/Multicast/
Unicast Storm Suppression		 Supports storm suppression based on port rate percentage;
Supports storm suppression based on PPS
QoS/ACL Supports packet filtering;
SP/WRR/SP+WRR queue scheduling;
Bidirectional ACL;
Port-based rate limiting;
Flow-based redirection;
Time range support
Mirroring Supports port mirroring;
Flow mirroring
Security Features Supports user hierarchical management and password protection;
SSH 2.0; Port isolation;
802.1X; Port security;
MAC address authentication;
IP Source Guard; HTTPS




Product Features


Rich Service Performance

The H3C S5000X-EI comes with 4 built-in 10G ports, delivering high-density Gigabit access and cost-effective 10G uplink to protect user investments. It supports 802.1X, Web and MAC authentication, as well as port isolation, ACL, port rate limiting and comprehensive IPv6 features.

IRF2 (Intelligent Resilient Framework 2)

IRF2 virtualizes multiple physical switches into one logical unit for unified management and operation.
  • Simplified Management: Access any port to log into the unified system; configure the entire IRF via a single device.
  • Simplified Services: All control protocols run collectively. Cross-device link aggregation replaces STP, reducing protocol interaction and accelerating network convergence.
  • Flexible Scalability: Devices support hot plugging during expansion or removal without service interruption.
  • High Reliability: Link aggregation provides multi-link redundancy. The system automatically elects a new Master upon failure for 1:N device backup. Real-time protocol backup ensures 1:N protocol reliability.
  • High Performance: Overall switching capacity and port density equal the total of all member devices for prominent performance improvement.
  • Easy Management: The whole framework uses one IP address, simplifying device and topology management and cutting maintenance costs.

Comprehensive Security Control Policies

It provides complete ARP defense including ARP Detection and ARP rate limiting to guard against ARP attacks and relieve CPU pressure. Multiple authentication modes such as 802.1X, Web and centralized MAC authentication adapt to diverse network requirements.

Rich QoS Policies

It supports L2~L4 packet filtering and traffic classification. Three queue scheduling modes (SP, WRR, SP+WRR) are available. Bidirectional ACL, traffic policing and inbound/outbound port & flow mirroring are provided for network monitoring and troubleshooting.

Excellent Management Features

The series is compatible with SNMPv1/v2/v3 and H3C iMC. It supports CLI, Web and Telnet for easy management, plus SSH 2.0 for secure encrypted access.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
